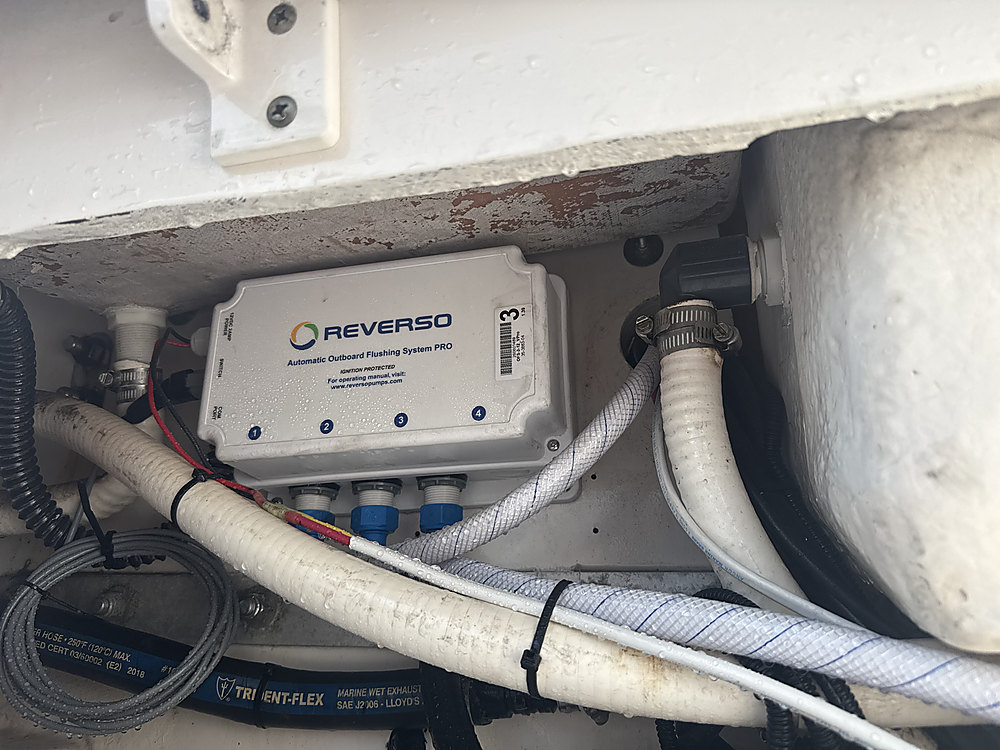

A Reverso automatic outboard flushing panel installed by Eastern Bay Boat Works

Reverso · Maintenance

Reverso Automatic Outboard Flushing

One freshwater connection and a button that flushes each outboard in turn, with the Seakeeper gyro brought into the same setup.

Flushing multiple outboards after every saltwater trip is a time consuming part of boat ownership. This Reverso installation makes it considerably easier, using a permanently installed system to flush each outboard automatically from a single freshwater connection.

On this installation we also brought the boat's Seakeeper gyro into the freshwater flushing setup, so another saltwater cooled system gets flushed as part of the same process.

The goal was simple: make routine freshwater flushing easy enough that it stays routine.

From the blog: Reverso Outboard Flushing System Installation: A Small Upgrade That Makes Routine Maintenance Easier

The work

What the installation involved:

  • The Reverso system installed permanently onboard
  • Plumbing run directly to the outboards' freshwater flushing connections
  • A dedicated freshwater inlet and control switch put somewhere convenient
  • Flush lines routed through the boat's existing rigging to each engine
  • The Seakeeper gyro's raw water circuit tied into the same system
  • Testing to confirm flow and operation through every connected component

Instead of connecting a hose to each outboard after every trip, the owner connects one hose, pushes a button, and the system cycles through the engines one at a time and shuts itself off.

Why we like these

It makes routine flushing easier. One connection and a button replaces flushing each outboard individually.

It saves real time on multi engine boats, and the benefit grows with three or four outboards to flush after every trip.

It protects equipment you have already paid for, by making the care of it easier.

The job

How it went

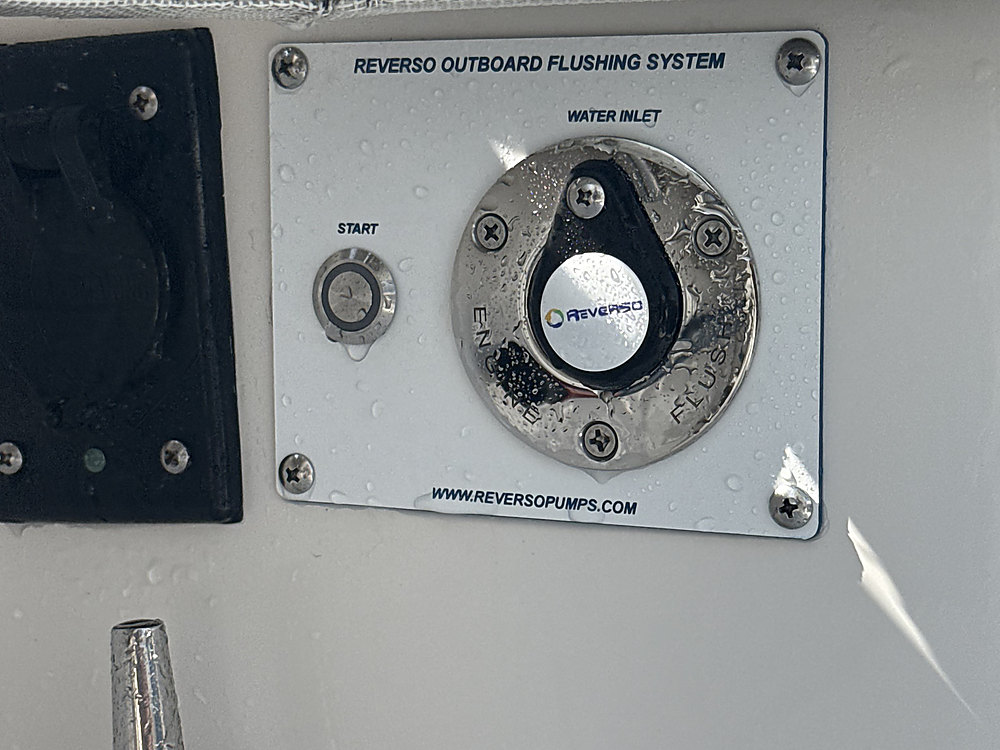

The Reverso freshwater inlet plate fitted to the hull side
The freshwater inlet, within easy reach

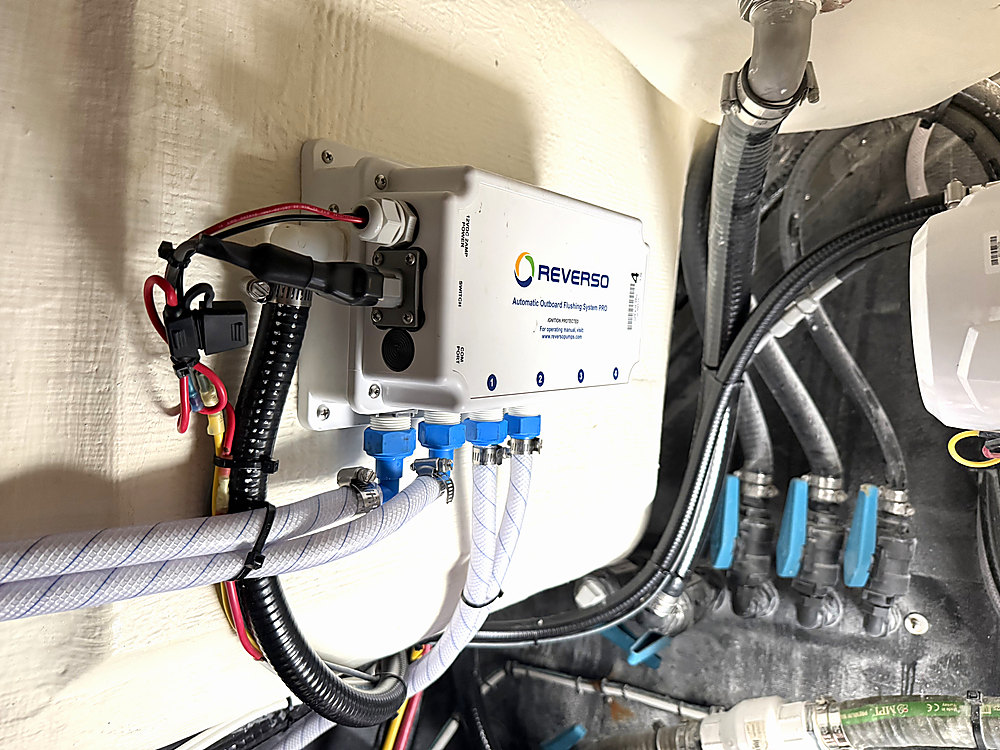

A Reverso flushing unit installed and plumbed on a second boat
A second boat, the same system

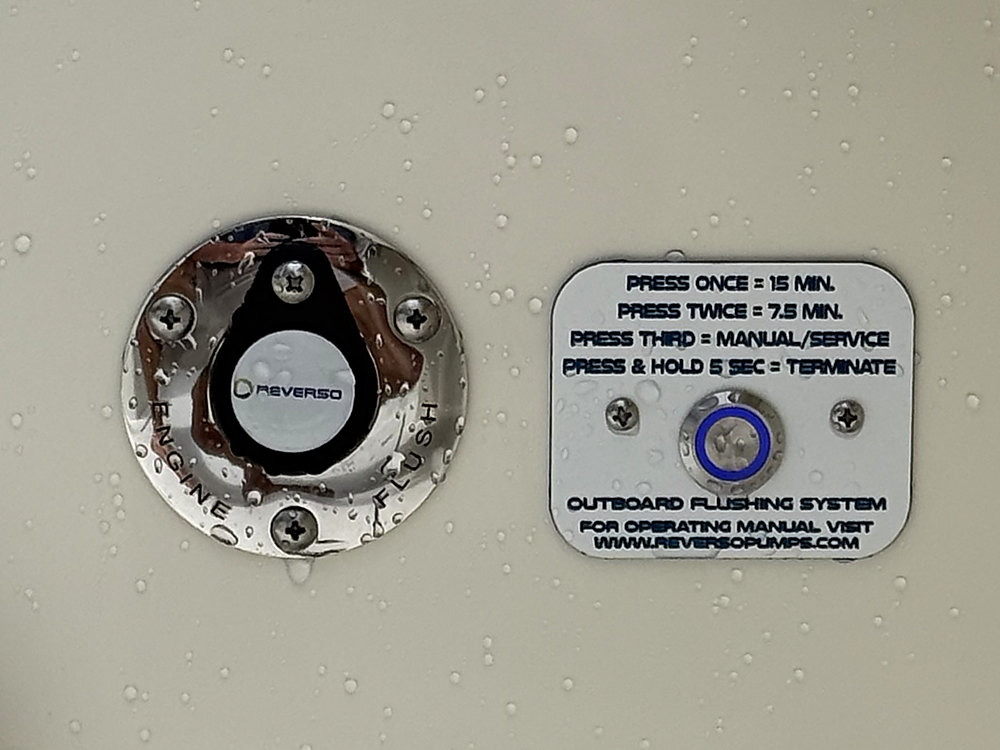

The Reverso deck plate beside its placard explaining the flushing cycle
The deck plate, and what each press does

Interested in a Reverso flushing system?

If you want an easier way to flush after running in saltwater, we can work out the right setup for your boat and handle the installation, plumbing and setup.
